|Supported CPU||LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* L3 cache varies with CPU|
|Chipset||Intel H510 Express Chipset|
|Memory||11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules|
|Graphics||Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz|
|Slots||1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) 1 x PCI slot|
|Supported Storage||Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x2 SSD support) 4 x SATA 6Gb/s connectors|
|LAN||Realtek GbE LAN chip (1 Gbit/100 Mbit)|
|Audio||Realtek audio codec High Definition Audio 2/4/5.1/7.1-channel|
|USB Port||Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 5 x USB 2.0/1.1 ports (8 ports on the back panel, 1 port available through the internal USB header) Chipset+USB 2.0 Hub: 3 x USB 2.0/1.1 ports available through the internal USB headers|
|Internal I/O Ports||1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x speaker header 1 x Clear CMOS jumper|
|External I/O Ports||1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x serial port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks|
|DIMENSIONS||24.4cm x 21.0cm|
|Form Factor||Micro ATX Form Factor|
|BIOS||2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0|

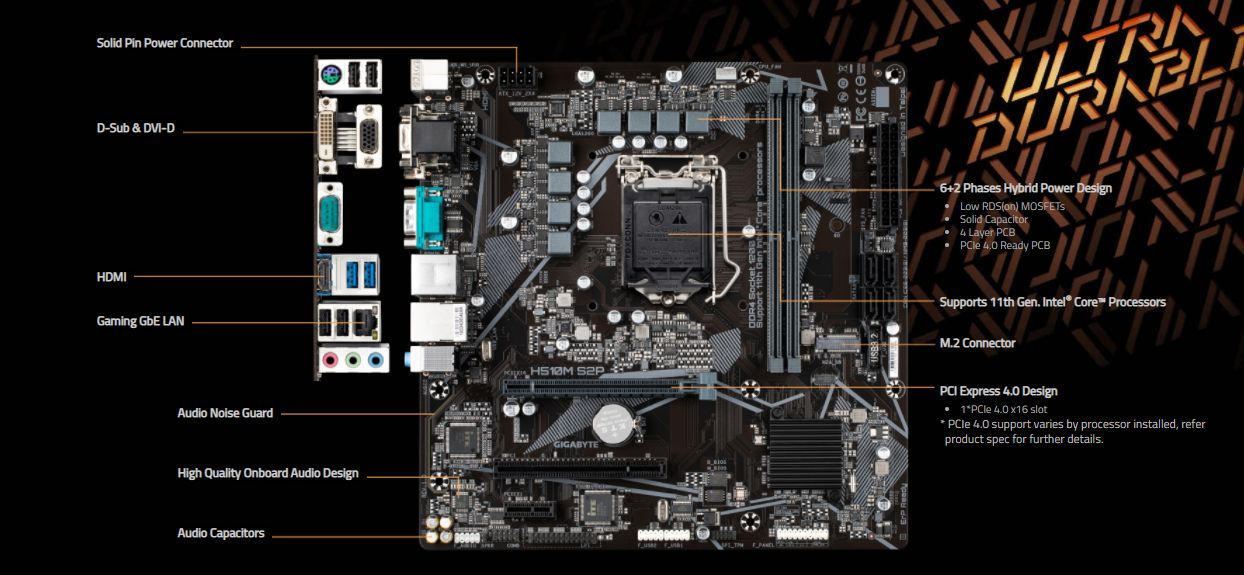

Gigabyte H510M S2P Micro ATX Motherboard in Bangladesh
Get gaming-level performance and DisplayPort connectivity with the H510M S2P Micro-ATX Motherboard from Gigabyte. Utilizing the Intel H510 Express Chipset chipset, this motherboard is meant to be used with CPUs that support the intel socket. Install up to 64GB of dual-channel DDR4 RAM across four slots. Storage drives are often installed using four SATA III connectors or an M.2 slot.
A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, also as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports also are present on the rear panel. The Gigabyte H510M S2P Micro-ATX Motherboard utilizes the Realtek audio codec and supports Windows 10 64-bit operating systems.

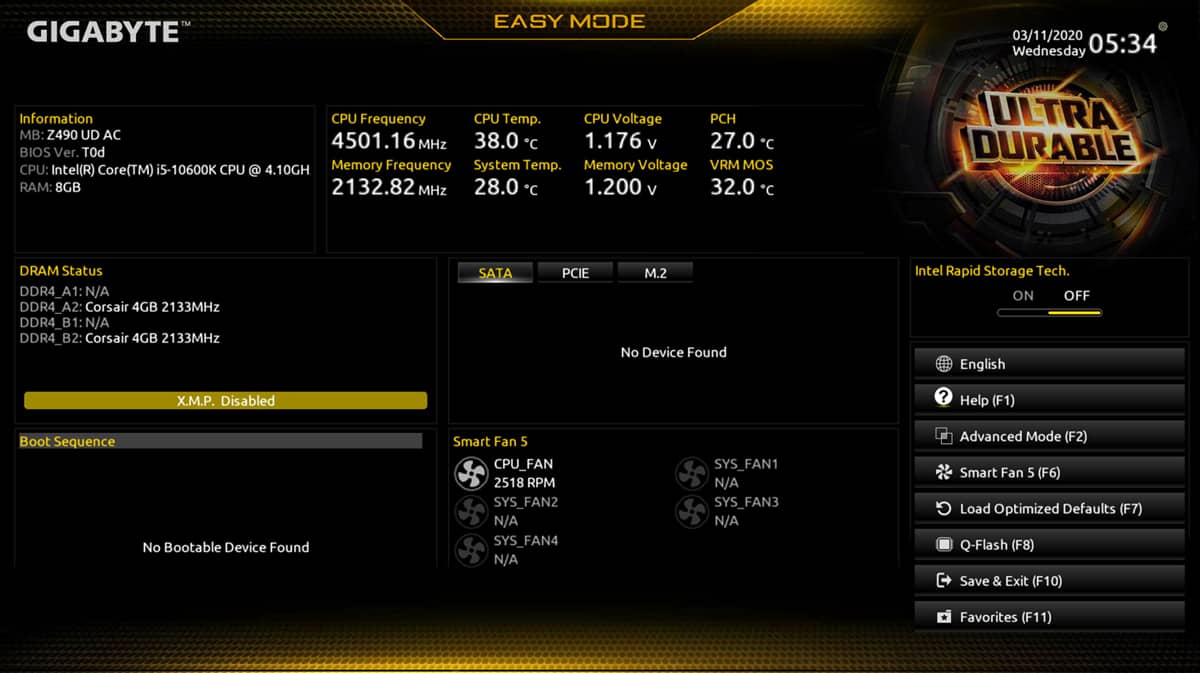

The BIOS is essential for users during initial setup to allow for the most optimal settings. Gigabyte H510M S2P With a new GUI and easier-to-use functionalities, Gigabyte H510M S2P has been able to reinvent the BIOS to give users a better experience while setting up their new system.
